Name: Evolution Aqua Nexus Plus 220+ (18,000L)
SKU: 484564564
Price: 3999.00 AUD
Availability: OutOfStock

Evolution Aqua Nexus Plus 220+ (18,000L)

$3,999.00

Out of stock

Description

Introducing the next generation of Nexus Filtration Systems from Evolution Aqua.

Improved Mechanical Filtration
Improved Flow
Dramatically Improved Clarity
Easy To Clean And Maintain
Better Solids Handling
New & Improved

The Nexus 320 and Nexus 220 filtration systems deliver dramatically improved levels of clarity for ponds. Building on the success of the award winning Nexus range this new generation of filters cleverly combine mechanical and biological filtration into one advanced filter system, whilst being incredibly easy to clean and simple to install.

How the Nexus+ Works

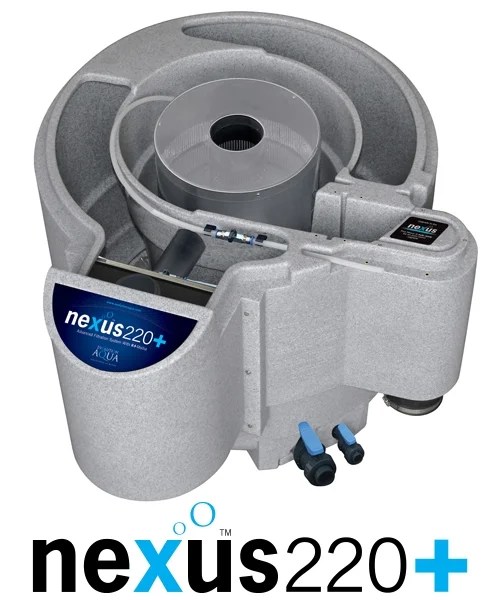

The Nexus+ filter is an innovative biological and mechanical filter system in one. Water from the pond enters the Nexus+ via the inlet into the inner chamber which works as a vortex allowing larger solids to settle out. The water then passes through Eazy filter, where finer particles are removed at the mechanical stage of filtration, thanks to the static bed of K1 Micro filter media.

The mechanically clean water then passes to the outside chamber of the Nexus+ where the new K+Media Moving Bed is located for biological treatment prior to being returned to the pond. At this stage, biological breakdown occurs through different strains of bacteria and filter feeders living on the vast protected surface area of each piece of the K+Media. These bacteria convert Ammonia and Nitrite into less harmful Nitrate. Water then passes through the exit grill into the outlet, returning back to the pond.

Installing the Nexus+

The Nexus+ MUST be installed on a solid, level base, a minimum of 1.2 metres x 1 metre. Failure to do this will cause irreparable damage to the filter and will therefore invalidate your warranty.

GRAVITY-FED INSTALLATIONS

By this we mean that your pump is going to be used to return the filtered water to the pond and therefore your filter will be supplied by gravity via a larger diameter pipe. In this situation the water level in the filter will be at the same level as the pond.

Model	Max Pond Size	Max Flow Rate	Volume of Water in Nexus	Amount of K1 Micro in Eazy Chamber	Amount of K+Media supplied in Bio-chamber	Max Capacity for K+Media
	18,000 litres 4,000 UK Gallons 4,800 US Gallons	10,000 litres/hour 2,200 UK Gallons/hr 2,640 US Gallons/hr	510 litres 112 UK Gallons 135 US Gallons	18 litres of K1 Micro inside the Eazy	50 litres of K+Media in the bio-chamber	150 of K+Media in the bio-chamber
	34,000 litres 7,500 UK Gallons 9,000 US Gallons	13,000 litres/hour 2,859 UK Gallons/hr 3,431 US Gallons/hr	840 litres 185 UK Gallons 222 US Gallons	20 litres of K1 Micro in the Eazy	100 litres of K+Media in the bio chamber	300 litres of K+Media in the bio chamber

New advanced filtration media

Plastic media, for use in biological pond filters – specifically in moving bed bio reactors, was pioneered by Evolution Aqua, some 20 years ago. In recent years, other plastic media have come onto the market, usually with the aim of trying to get more and more surface area. However, one drawback to using plastic media has always been the time it takes to establish a stable biofilm – essential for good filtration.

After many years of research, Evolution Aqua have now developed a new media that not only gives class leading surface area, but also overcomes the problem of long maturation times.

K+Media is designed and manufactured in the UK by Evolution Aqua. This advanced media, with its innovative design, and class leading surface area provides enhanced biological and mechanical filtration.

As Evolution Aqua extrude K+Media, Minerals and Enzymes are added to the raw material. The result of this process, unique to Evolution Aqua, is a filtration media that not only outperforms most of its competitors due to its large protected surface area, but also answers the problem of how to speed up the time taken to mature your filter.

Minerals added for faster filter maturation

During the extrusion process, Evolution Aqua add a range of minerals, along with magnesium, calcium, enzymes and salt to the raw material that is used to manufacture K+Media. The result means that K+Media will mature much faster than many other types of media.

– The addition of these minerals creates a rough surface on the media. This textured surface has a microscopic honeycomb of peaks and craters that allow waste particles to collect, and nitrifying bacteria to form.

– The minerals act as a food source for the bacteria, helping the bacteria to develop and multiply at a faster rate, further improving maturation times.

– Calcium alone has proven advantages for developing and maintaining effective bio-films.

– The enzymes that are added also help to make the media “sticky” so waste particles can adhere to media easier.

– Salt is added during the extrusion process, which is dissolved during the cooling process, leaving a rough surface on which bio-film can easily adhere.

Stable bio-film development

The shape of K+Media optimises the amount of “quiet zones” within the media where a stable bio-film can develop. Whilst K+Media keeps the integral profile of K1 Media at its core, there is an extra layer of cells and fins around the outside of each piece that enable microscopic organisms such as Rotifers and Vorticella to thrive. This is an additional benefit as competitor media do not have such “quiet zones” that would allow these higher lifeforms of filter feeders to develop. The bacteria and organisms that form within the bio-film ensure the media delivers optimum levels of biological filtration in the moving bed, which has been proven filtration technology for many years in the fishkeeping hobby.
