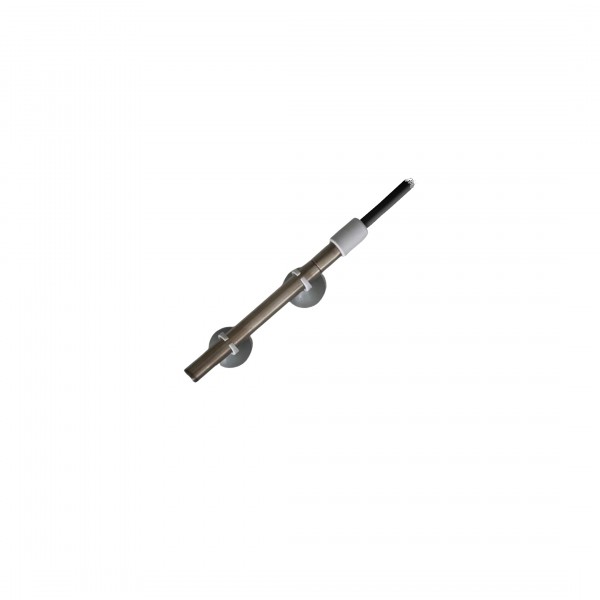

Schego PTC Titanium Water Heater 100w,200w,300w and 600w

Whenever liquids have to be heated the Schego heaters can be applied. They are made of high-quality titanium tube, therefore unbreakable and sea water-proof. All heating elements are grounded and guarantee a high safety standard. Their power range extends from 50 to 600 W. The heaters are used for laboratory baths and bacterial growths as well as in anti-freezing devices, mobile water heating systems and mobile hand-washing facilities

The novel PTC heaters made of titanium tubing are particularly energy-efficient because their output depends on the heat extraction. If a lot of heat is extracted from the heater, it readjusts its temperature independently and increases its output. As soon as it reaches its maximum temperature, the power decreases again and hardly any current flows. Thanks to this self-regulating property, PTC heaters cannot overheat, which makes them particularly safe.

Whenever a certain temperature should be reached and maintained the Schego thermostat TR2 is applied. It can be loaded up to 2000 W. Its LC display shows the operating parameter, the measuring range extends from – 55 °C to + 125 °C . Indexing accuracy can be chosen from 0.1 °C to 10.0° C in steps of 0.1 °C. The display is rotatable by 180° via keys. The TR2 is able to regulate cooling as well as heating devices reliably.

How to use:
Install the Schego Titanium heater in the aquarium at a depth of no more than 1.2 meters. Make sure that the heater is connected. The heater does not regulate the temperature , it does not have a built-in temperature controller, for the correct operation of the Schego titanium heater, a controller is needed that will control the operation of the heater.

A thermostat must be used with this heater (Not Included)

Mains voltage    230 V or 120 V
Power consumption
(briefly when switching on)

PTC 100 W: ~ 200 W
PTC 200 W: ~ 450 W
PTC 300 W: ~ 600 W
PTC 600 W: ~ 950 W
Power consumption
(at 20 °C)    PTC 100 W: ~ 100 W
PTC 200 W: ~ 200 W
PTC 300 W: ~ 300 W
PTC 600 W: ~ 600 W
Cable    At 230 V: H03VV-F 3G 0.75 mm²
At 120 V: SJT 3x 0.824 mm² (18 AWG)
Cable length    1.5 m
Heating element length

PTC 100 W: 150 mm
PTC 200 W: 250 mm
PTC 300 W: 350 mm
PTC 600 W: 550 mm
Heating element diameter 12 mm
Protective system    IP68
Maximum water immersion depth 2 m
Recommended power depending on the volume of water at room temperature of 20 °C

PTC 100 W: up to 100 l
PTC 200 W: 100 – 200 l
PTC 300 W: 200 – 300 l
PTC 600 W: 300 – 600 l

100w

Specifications:
Protection class: IP 68
Maximum immersion depth: 1.2m
Cable length: 1.5m
Power: 100W
Height: 150mm
Diameter: 12mm
Australian 240V plug

200w

Specifications:
Protection class: IP 68
Maximum immersion depth: 1.2m
Cable length: 1.5m
Power: 100W
Height: 250mm
Diameter: 12mm
Australian 240V plug

300w
Specifications:
Protection class: IP 68
Maximum immersion depth: 1.2m
Cable length: 1.5m
Power: 100W
Height: 350mm
Diameter: 12mm
Australian 240V plug

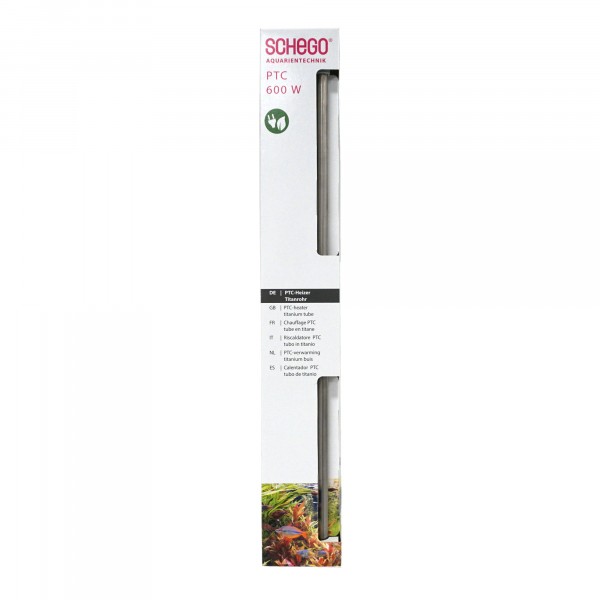

600w

Protection class: IP 68
Maximum immersion depth: 1.2m
Cable length: 1.5m
Power: 100W
Height: 550mm
Diameter: 12mm
Australian 240V plug
