Description

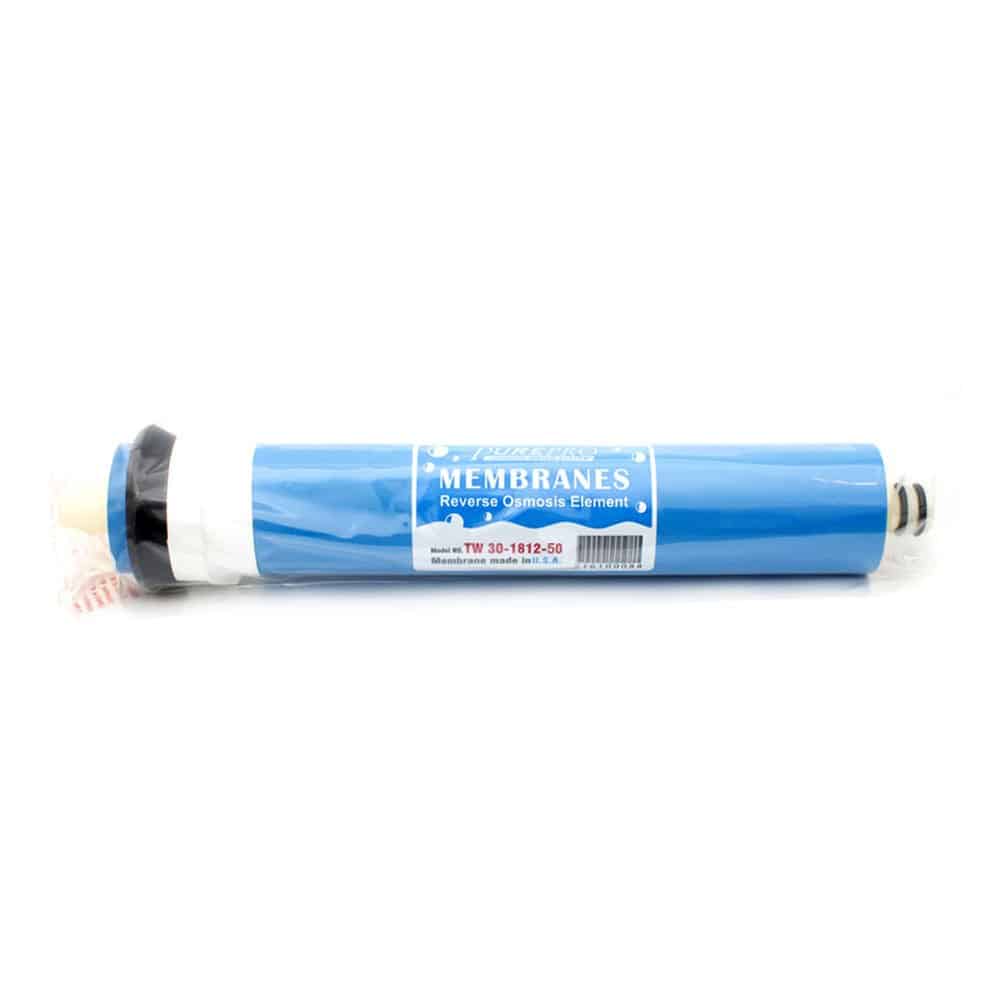

A HIGH QUALITY, THIN FILM COMPOSITE (TFC) MEMBRANE THAT PROCESSES 50 GALLONS PER DAY.
Pure-Pro reverse osmosis membrane elements are one of the industry’s most reliable.
Advanced membrane technology and automated fabrication allow these elements to deliver consistent performance that you can rely on.
Just some of the water contaminants that these membranes will remove are lead, copper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium.
PRODUCT SPECIFICATIONS
APPLIED PRESSURE PSI(BAR) |
PERMEATE FLOW RATE GPD(L/H) |
STABILIZED SALT REJECTION(%) |
80 (5.4) | 50 (7.9) | 98 |
1.Permeate flow and salt rejection based on the following test conditions: 250 ppm softened tap water, 77 F(25 C), 15% recovery and the specified applied pressure.
2.Minimum salt rejection is 96.0%.
3.Permeate flows for individual elements may vary +/-20%.
DIMENSIONS |
||||
A |
B |
C |
D |
E |
298mm | 22mm | 17mm | 44.5mm | 254mm |
OPERATING LIMITS
Membrane Type: Polyamide Thin-Film Composite (TFC)
Maximum Operating Temperature: 45°C
Optimal Operating Pressure: 50psi to 100psi
Maximum Operating Pressure: 100 psi
Maximum Feed Flow Rate: 7.6 litres per minute
Free Chlorine Tolerance: <0.1 ppm
GENERAL INFORMATION
- The first 45 minutes of permeate/filtered water should be discarded. Do not use this initial permeate/filtered water for aquarium water.
- Keep membranes moist at all times after initial wetting, do not allow them to dry out.
