Description

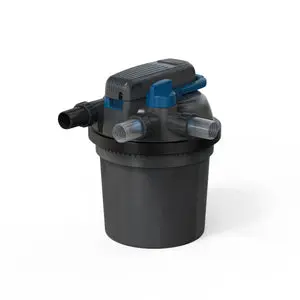

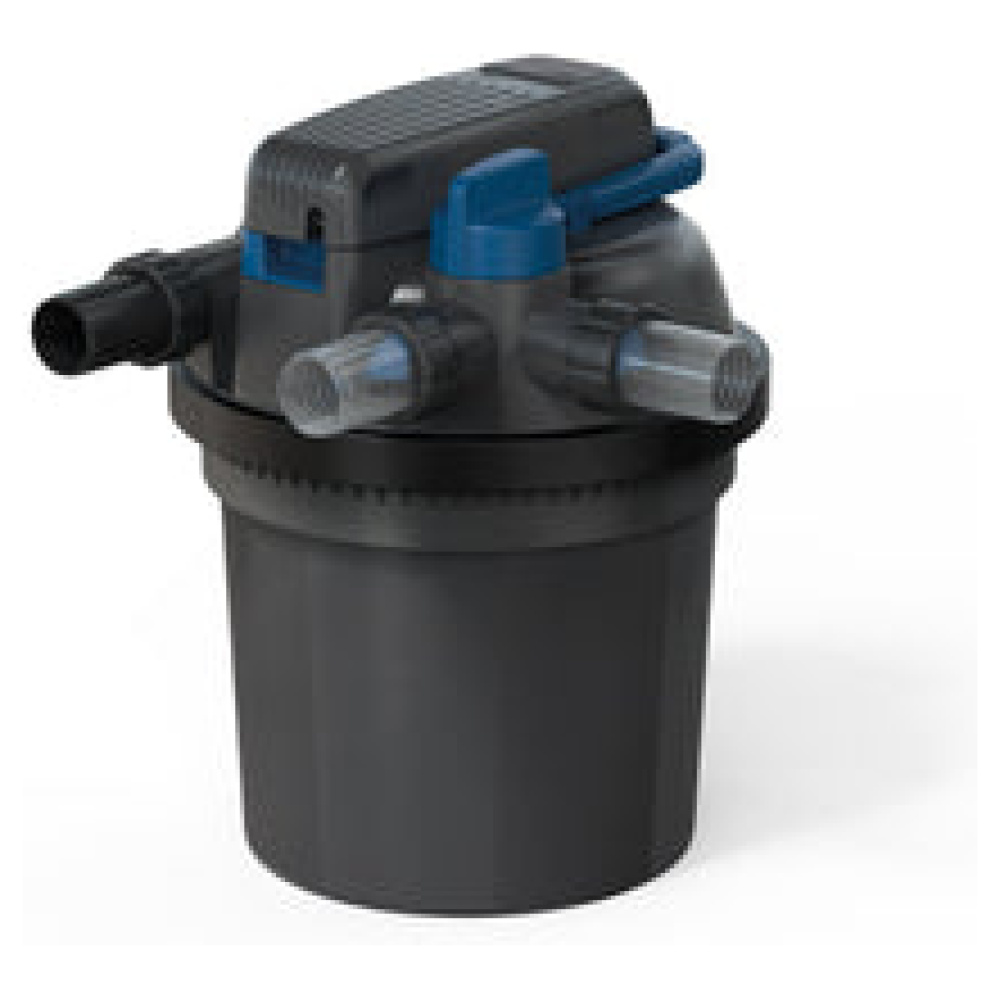

Pressure filter with first-class filter performance and special functions, available either individually or as a set with matching pump. Clear water guarantee: effective nutrient decomposition thanks to large filter surface and integrated UVC clarifier for the removal of pathogens, floating algae and turbidity.

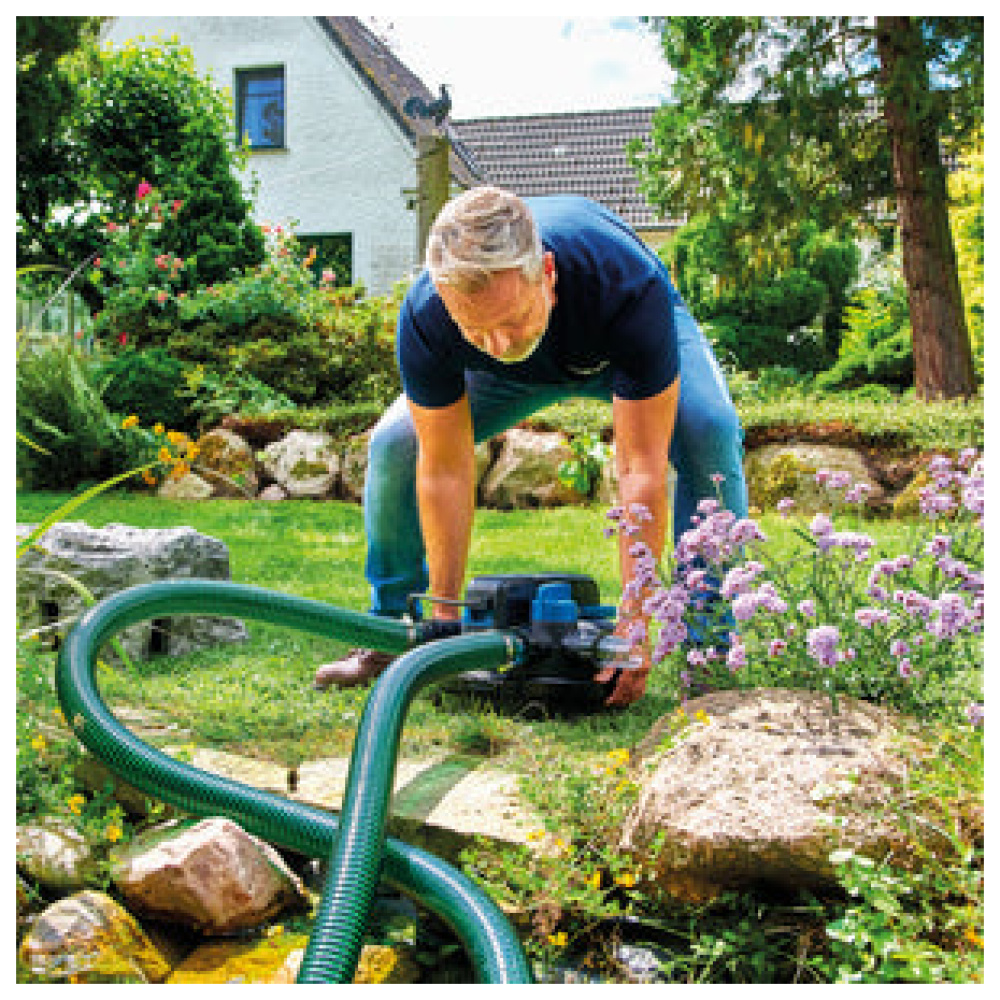

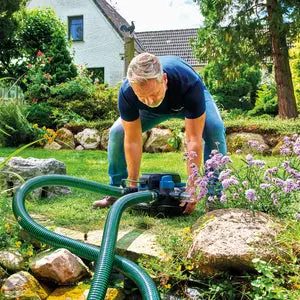

All operating elements are integrated in the cover. This allows the filter to be sunk into the ground at ground level and blends harmoniously into any garden landscape.
- Clear water guaranteed through the ideal combination of filter, pump and UVC technology

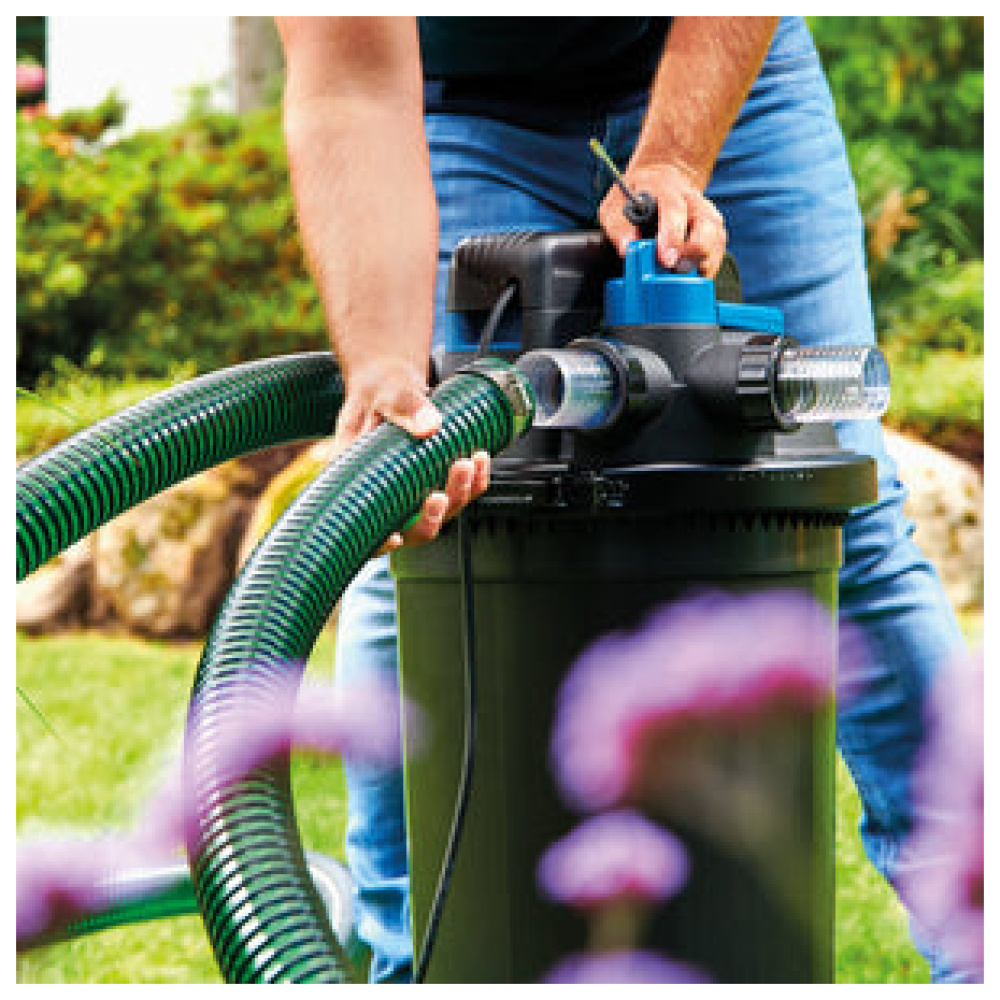

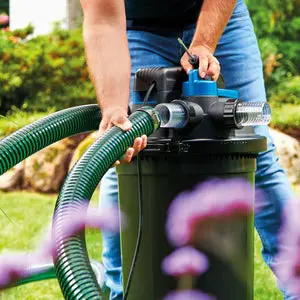

- Convenient cleaning thanks to patented
- Easy Clean Technology Almost invisible integration in the environment
Specifications
Product Number | 03OP015 | 88448 |
Rated voltage + frequency | 230 V / 50 Hz |
Power consumption – W | 24 |
Power cable length – m | 5 m |
Net weight | 8.80 kg |
Guarantee (+ request guarantee) – years | 2 + 1 Years |
UVC power – W | 24 W |
Number of blue filter foams | 1 Unit |
Number of red filter foams | 1 Unit |
Number of purple filter foams | 1 Unit |
Connection inlet – mm | 38 / 50 mm |
Connection inlet | 1 ½ / 2″ |
Connections outlet – mm | 38 / 50 mm |
Connections outlet | 1 ½ / 2″ |
Connections sludge discharge – mm | 38 / 50 mm |
Connections, sludge discharge | 1 ½ / 2″ |
Max. flow rate – l/h | 9000 l/h |
Max. operating pressure – bar | 0.2 bar |
Suitable for ponds up to max. – m³ | 13 m³ |
Suitable for ponds with fish stock – m³ | 7 m³ |
